DESCRIPTION:

The PERFECT Satellite Starter Package for anyone interested in getting into Amateur Satellite usage.

这是一套非常适合业余卫星爱好者和其他有兴趣的人进入该领域的完美的天线套餐。

The Package Includes:

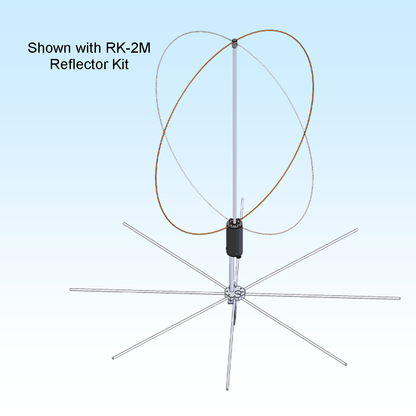

(1) EB-144 & RK-2M
(1) EB-432 & RK-70CM
(1) Crossboom with Mounting Hardware

EB-144/RK-2M, 135-150 MHZ

天线增益:6dB
极化方式:RHCP/右旋圆极化
特点:适合入门级的业余无线电爱好者使用,性价比极高,可以不使用天线控制系统就可以很方便地接收空间站和地轨卫星的无线电信号.

The EB-144 EGGBEATER offers exciting new performance characteristics for both fixed and mobile operations.
The EGGBEATER produces smooth omnidirectional HORIZONTAL polarity at the horizon.
Above the horizon, the pattern transforms to RIGHT HAND CIRCULAR, making it a natural for OSCAR satellite use. By spacing the EGGBEATER 1/8 wave above a metal surface or adding the RK-2M Reflector kit, now standard, for base installations, the circular lobe increases by 6 dB, producing a hemispherical pattern. No rotationor steering is required. For terrestrial mobile, base, net control, contest or field day operation, increasing the distance above ground or over a metallic surface improves the horizontal radiation by 6 dB.
This produces instantaneous communications in all directions. Hams with little room or budget for larger antennas will experience a new standard of performance with the EB-144/RK2M.


EB-432/RK70CM, 400-470 MHZ

      FEATURES:
     EB-432天线的为6DB增益的打蛋器天线.
     适合入门级的业余卫星无线电爱好者使用,不需要天线控制器就可以收到空间站和低轨卫星的下行信号.
