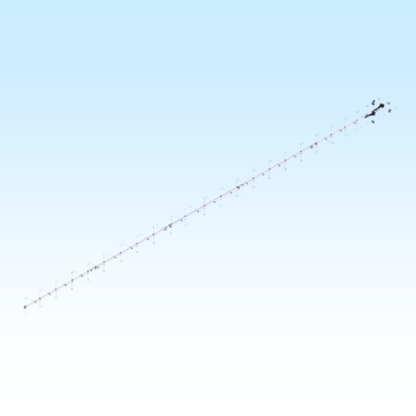

M2八木天线432MXP50,430-436 MHZ,20.9dBi
发布时间:2022-12-16    发布人:Flyer    浏览次数:

The 432XP50has been specifically designed for EME, Satellite and long haul tropo-scatter use. The dual polarity flexibility is particularly valuable for EME where the long waits for Faraday polarity rotation are eliminated. Having polarity flexibility for Satellie and long haul tropo paths is very useful as well. This flexibility handles polarity shift due to Hills, mountians and buildings, not to mention working mobiles and modest stations with verticals.  Gain and F/B are excellent. The extremely clean pattern maximizes forward gain and F/B. The pattern is important in order to match the antenna’s noise temperature with modern low-noise preamps. Using the 432XP50 in and array of two or four antennas is a very small, manageable package that can make moonbounce (EME) contacts even with very modest stations like Dxpeditions!
     The driven elements areCNC machined aluminum,O-ring sealed connectors assure low maintenance and long-term peak performance. Internal connections are embedded in a space-age silicone gel that seals out moisture and improves power handling. The 3/16” 6061-T6 rod elements are centered in the boom to minimize polarity interaction. Insulators are UV stabilized and locked in place with stainless retainers. The central boom section is 1-1/2" dia., tapering, front and rear,through 1-1/4" sections to 1" ends. A built in, non conductive vertical mast and Dacron cord supports the boom., M2 can supply all the parts for arrays of any size. M2makes the HPR-1, high power relay for polarity selection.M2 makes the best switching and non preamps using the latest device technology. See web site for more details.
